| Engine | |
| Engine model: | water cooled two cylinder DOHC 4 valves LX268MP |
| Displacement: | 322cc |
| Max power: | 32kw/10500rpm |
| Top torque: | 29N.m/9000rpm |
| Bore*Stroke: | 68*44.2mm |
| Fuel Supply System: | Bosch EFI |
| Transmission: | Wet 7-disc sliding clutch, Muti-blade international 6 gears |

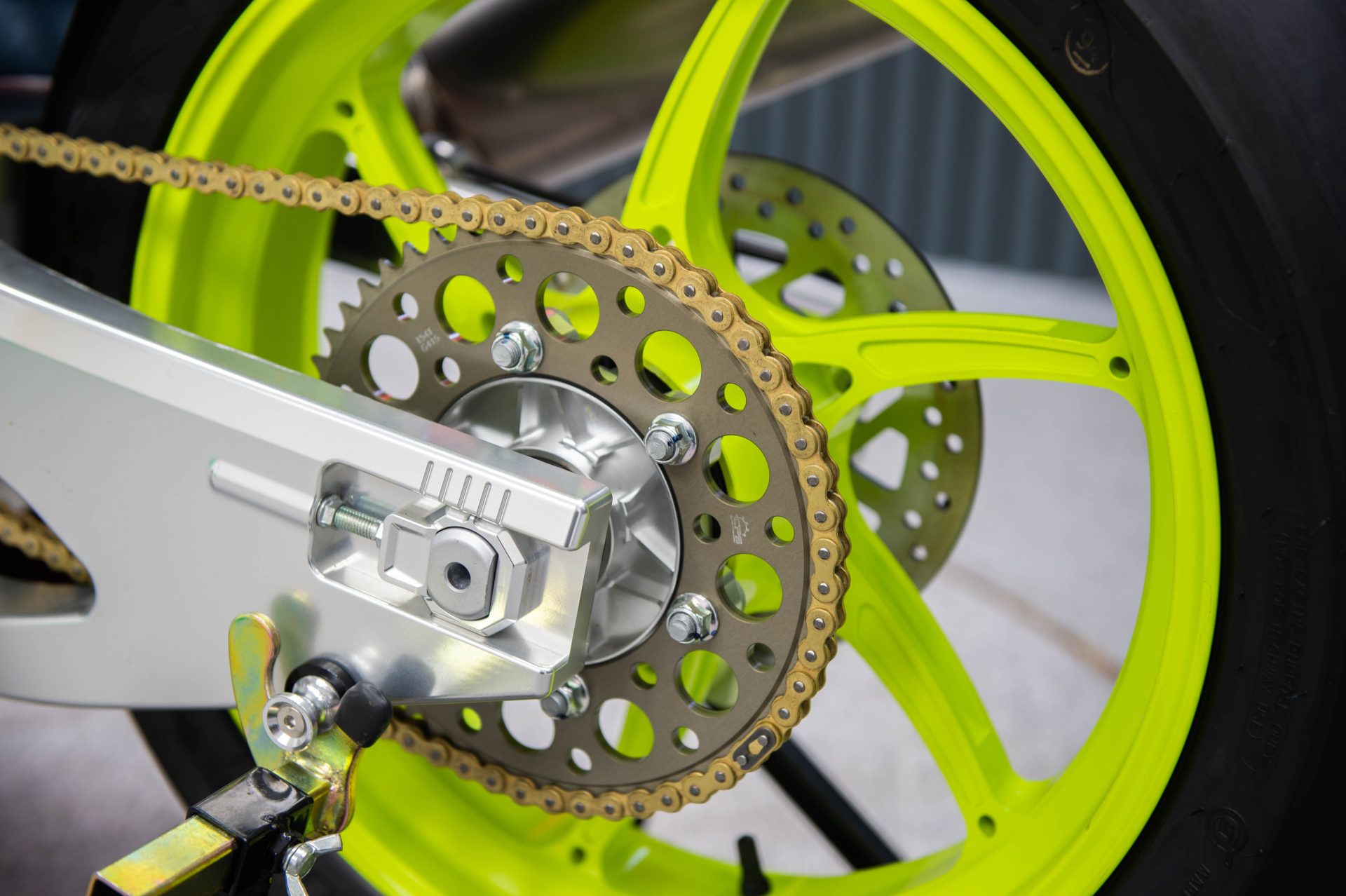

| Driving model: | 520 thickened oil chain |
| Top speed: | 210km/H |
| Vehicle Spec | |
| L*W*H: | 1940*680*1150mm |
| Wheel base: | 1340mm |
| Seat height: | 800mm |
| Fuel tank capacity : | 7L |
| Net weight : | 120kgs |
| Security control | |

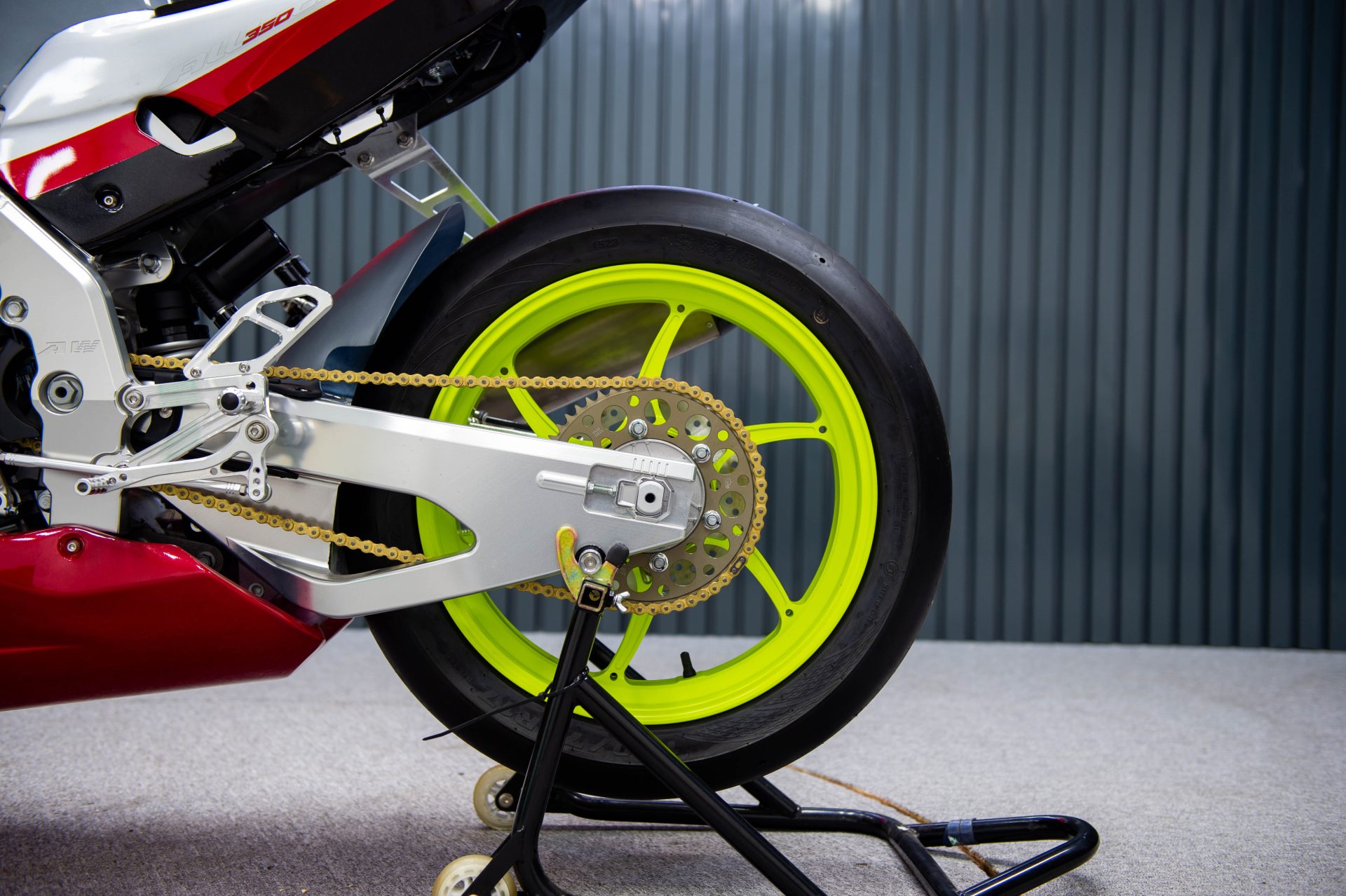

| Frame structure : | CNC alloy double-spar frame, CNC alloy rear swingarm |

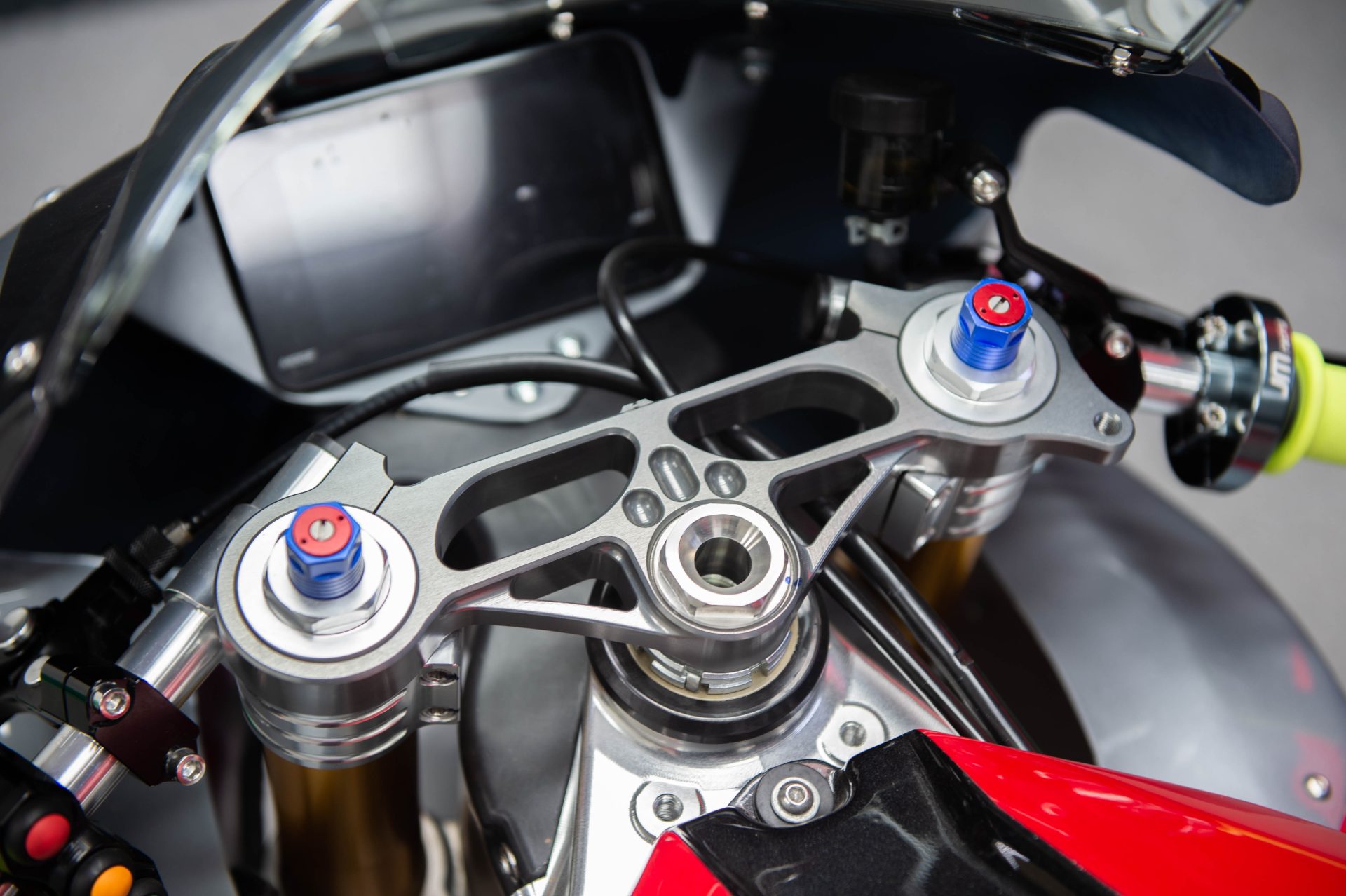

| Front suspension: | 41mm inner tube up-side-down,150mm stroke,adjustable |

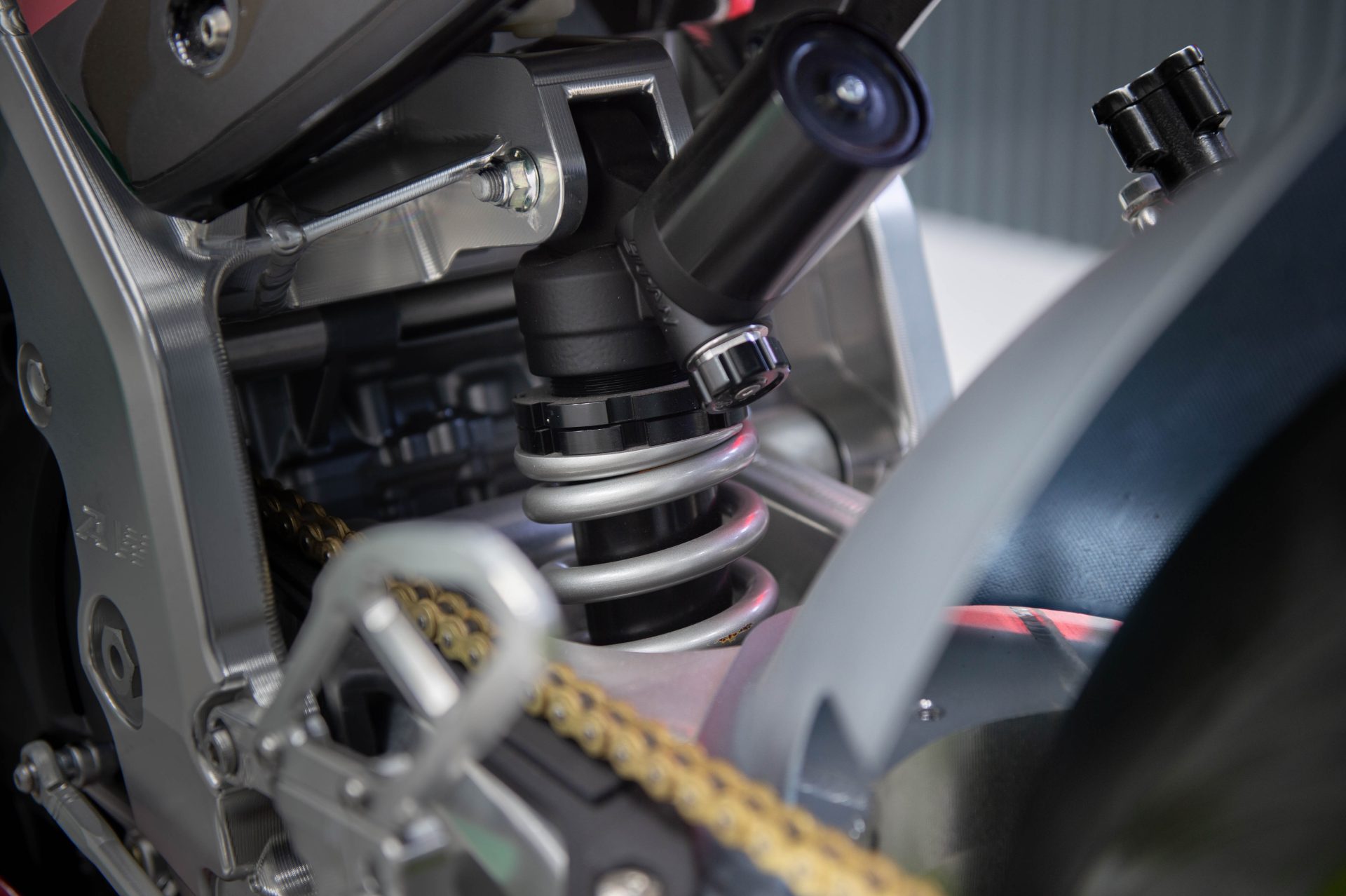

| Rear suspension: | Single adjustable central rear absorber, 104mm stroke |

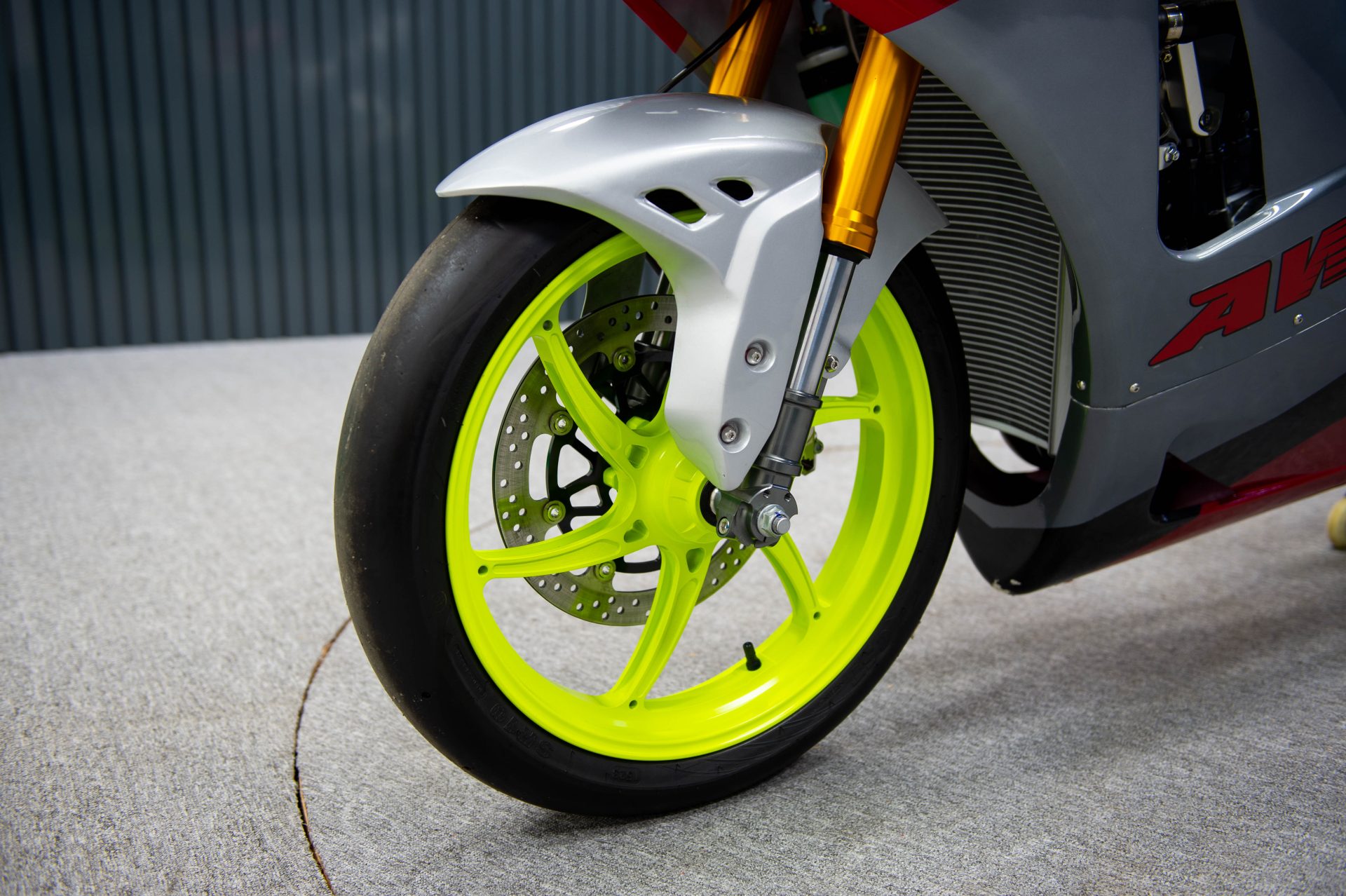

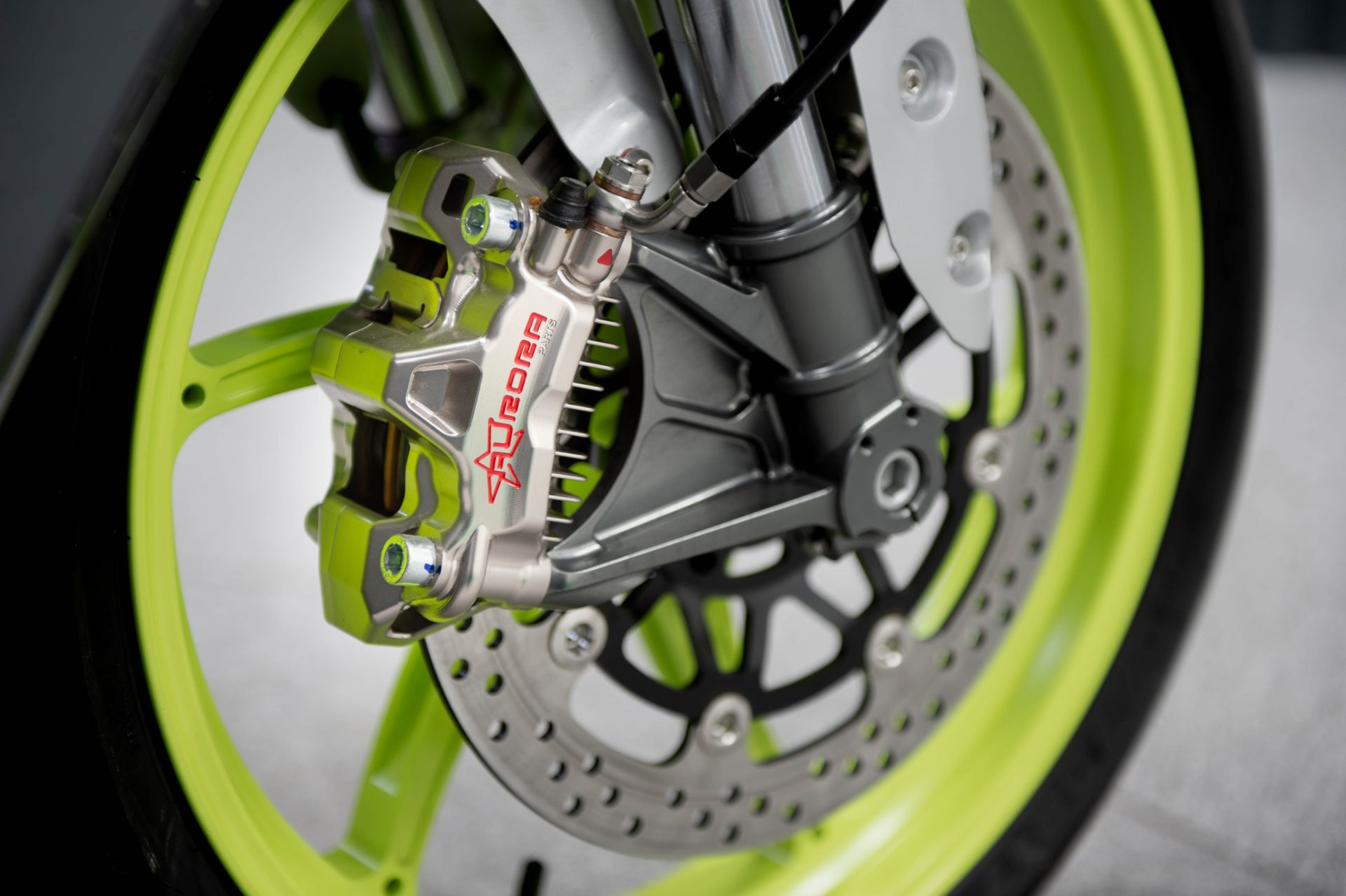

| Front brake: | 300mm floating disc, 32mm piston 4 pairs caplier |
| Rear brake: | 220mm disc, 22mm piston 2 pairs caplier |
| Front tire: | 110/70-17 hot melt tire (3.0J-17 alloy rim) |
| Rear tire: | 140/70-17 hot melt tire (4.0J-17 alloy rim) |
