Vehicle overview

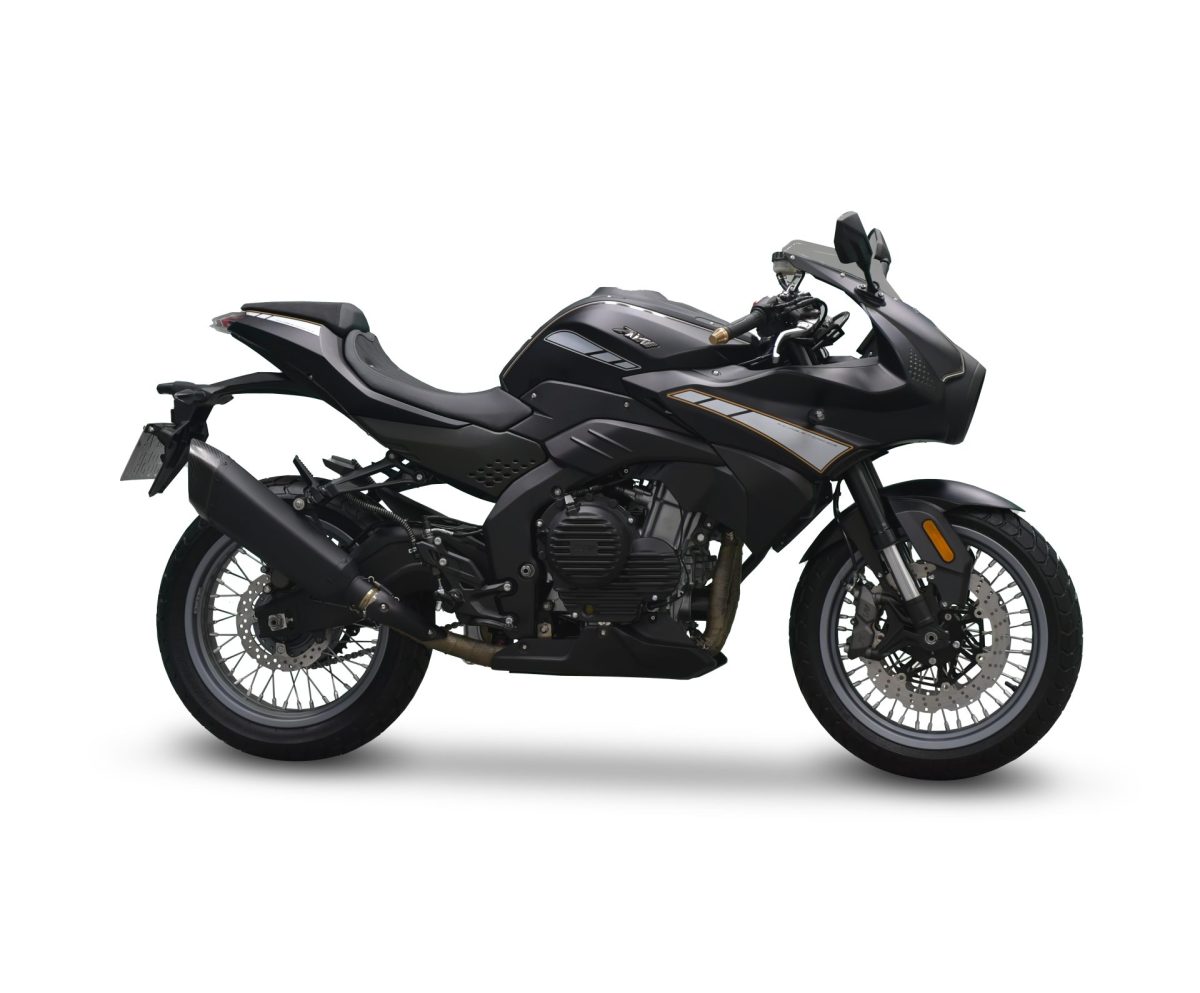

AW SABER 525N

Price:

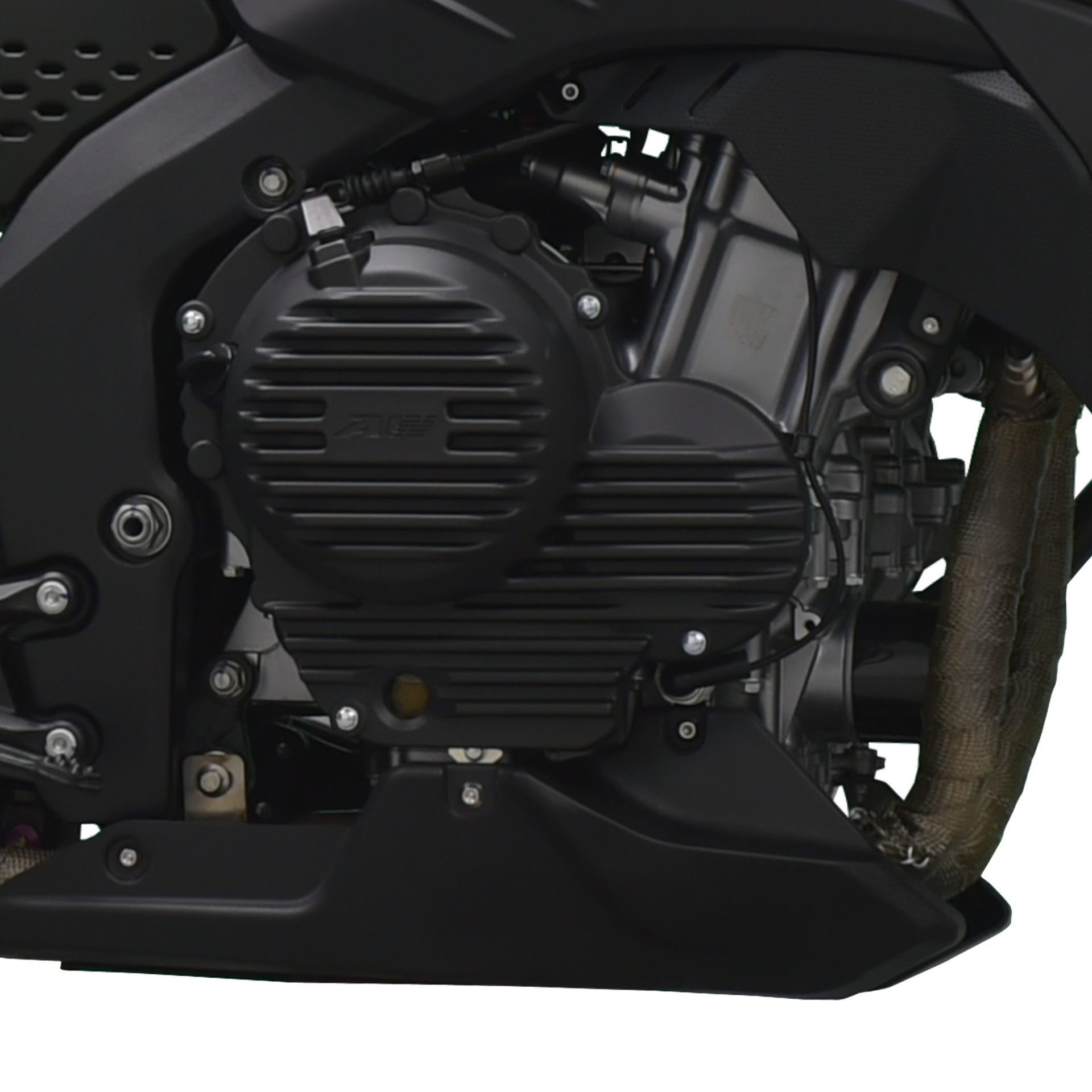

Engine: In-line twin-cylinder/water-cooled /DOHC/8-valves

Technical parameter

Engine
Engine model:	water cooled two cylinder DOHC 8 valves asynchronous engine
	497cc
Max power:	41kw/9000rpm
Top torque:	50.5N.m/7500rpm
Bore*Stroke:	67*66.8mm
Fuel Supply System:	Bosch EFI
Transmission:	Wet Muti-blade international 6 gears
Driving model:	520 thickened oil chain
Top speed:	185km/H

Vehicle Spec
LWH:	20286841108mm

Wheel base:	1375mm
Seat height:	785mm
Fuel tank capacity :	16L
Net weight :	170kgs

Security control
Frame structure :	Alloy double-spar frame, alloy swingarm
Front suspension:	41mm inner tube up-side-down,150mm stroke, adjustable
Rear suspension:	Single independent rear absorber, 104mm stroke

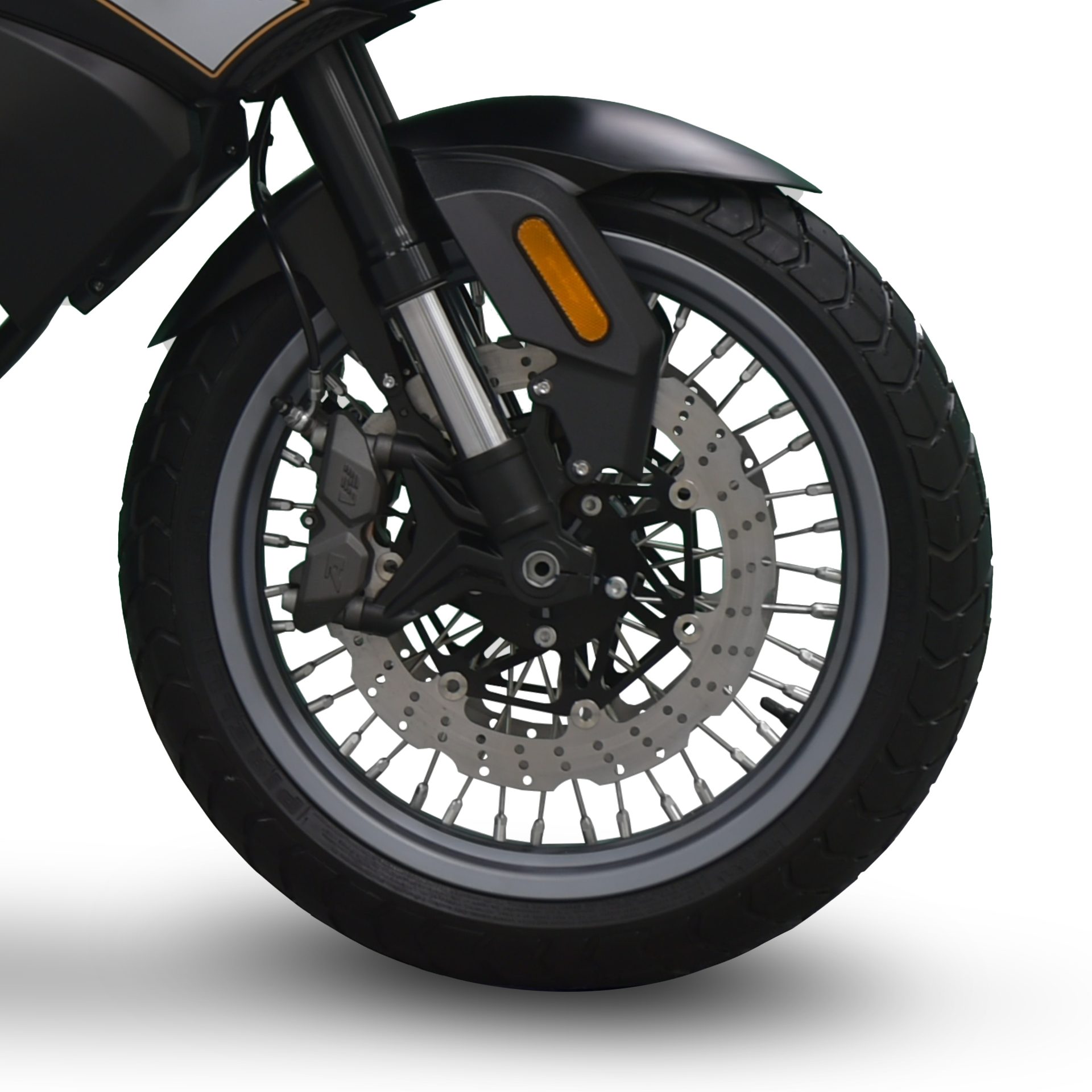

Front brake:	310mm four cylinder calipers double disc brake ABS
Rear brake:	220mm two cylinder caliper sing disc brake ABS
Front tire:	Pirelli 120/70 ZR17 M/C 58W
Rear tire:	Pirelli 160/60 ZR17 M/C 69W

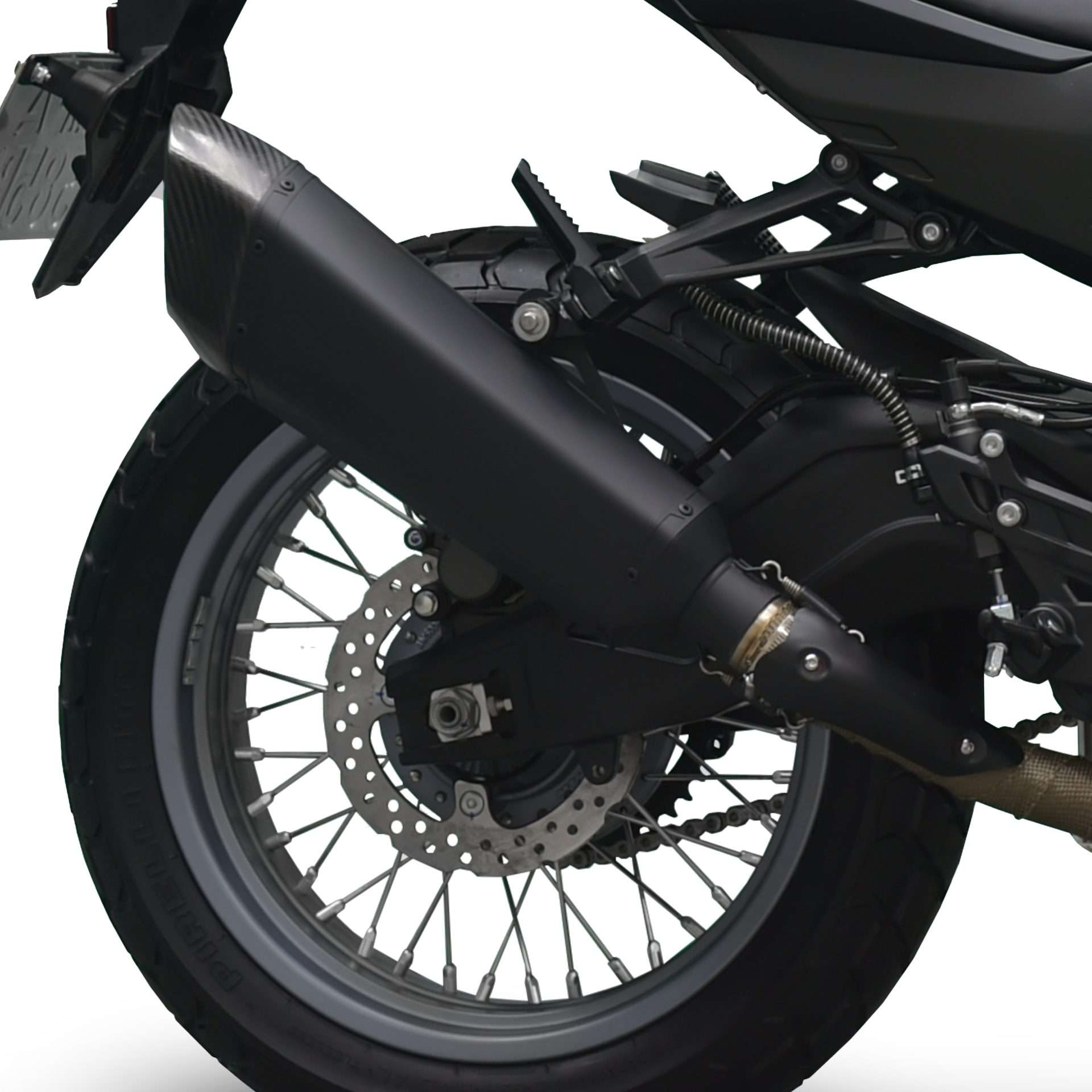

Exhaust system	full section stainless steel with noise reduction function carbon fiber
Tailpipe exhaust system
Frame form	all aluminum alloy double beam frame, aluminum alloy subframe
Fuel supply system	Electronic fuel injection
Suspension system	41mm inverted double damped adjustable front fork // center
Full function adjustable shock absorption, aluminum alloy double swing arms
Brake system	310mm double disc with 4 piston calipers (ABS) //220mm single disc with single piston calipers (ABS)
Tire specifications	Pirelli (DIABLO ROSSOIII) 120/70 ZR17 M/C 58W /// Pirelli (DIABLO ROSSOIII) 160/60 ZR17 M/C 69W

Performance characteristics

Gallery
