Vehicle overview

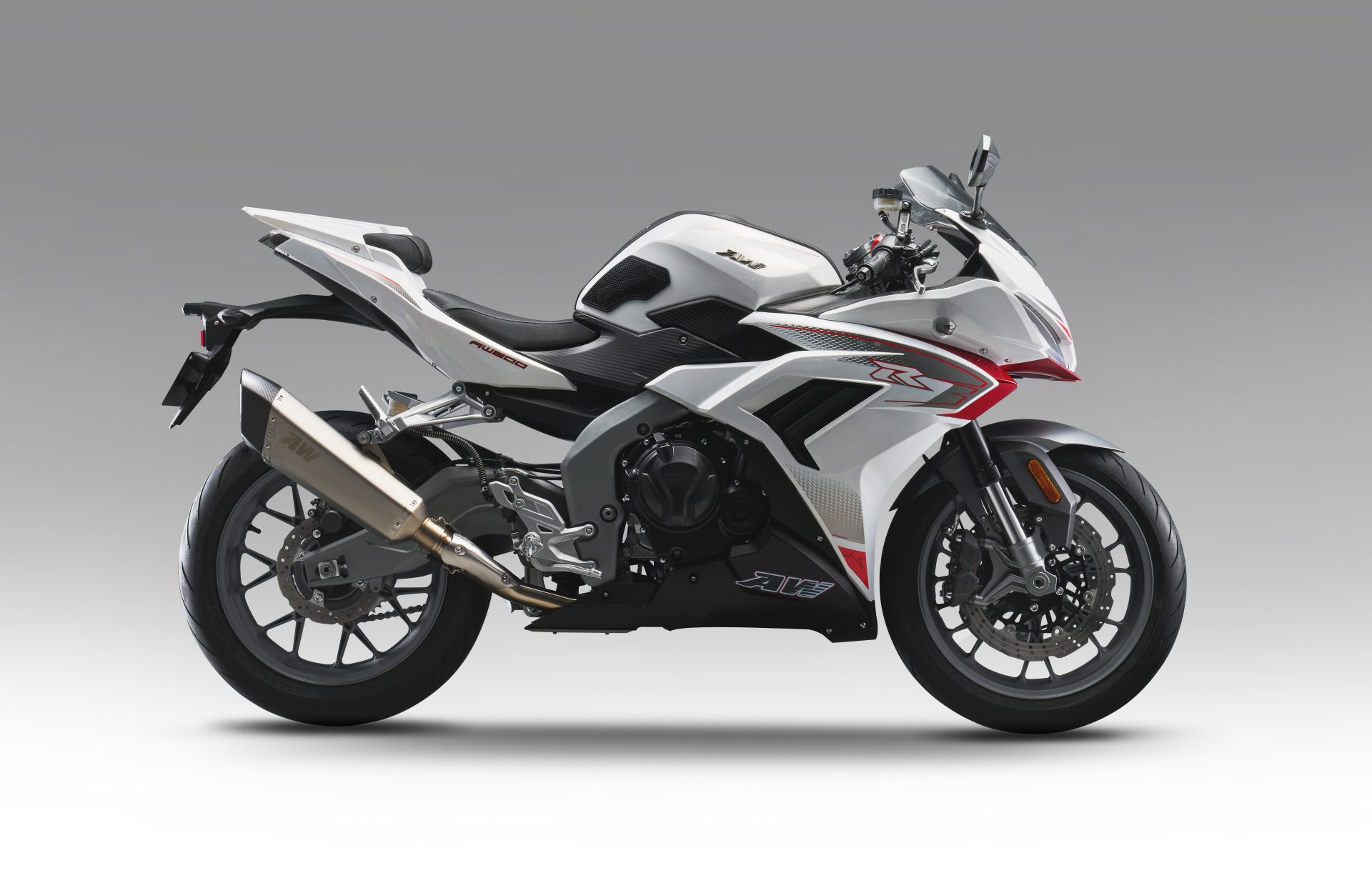

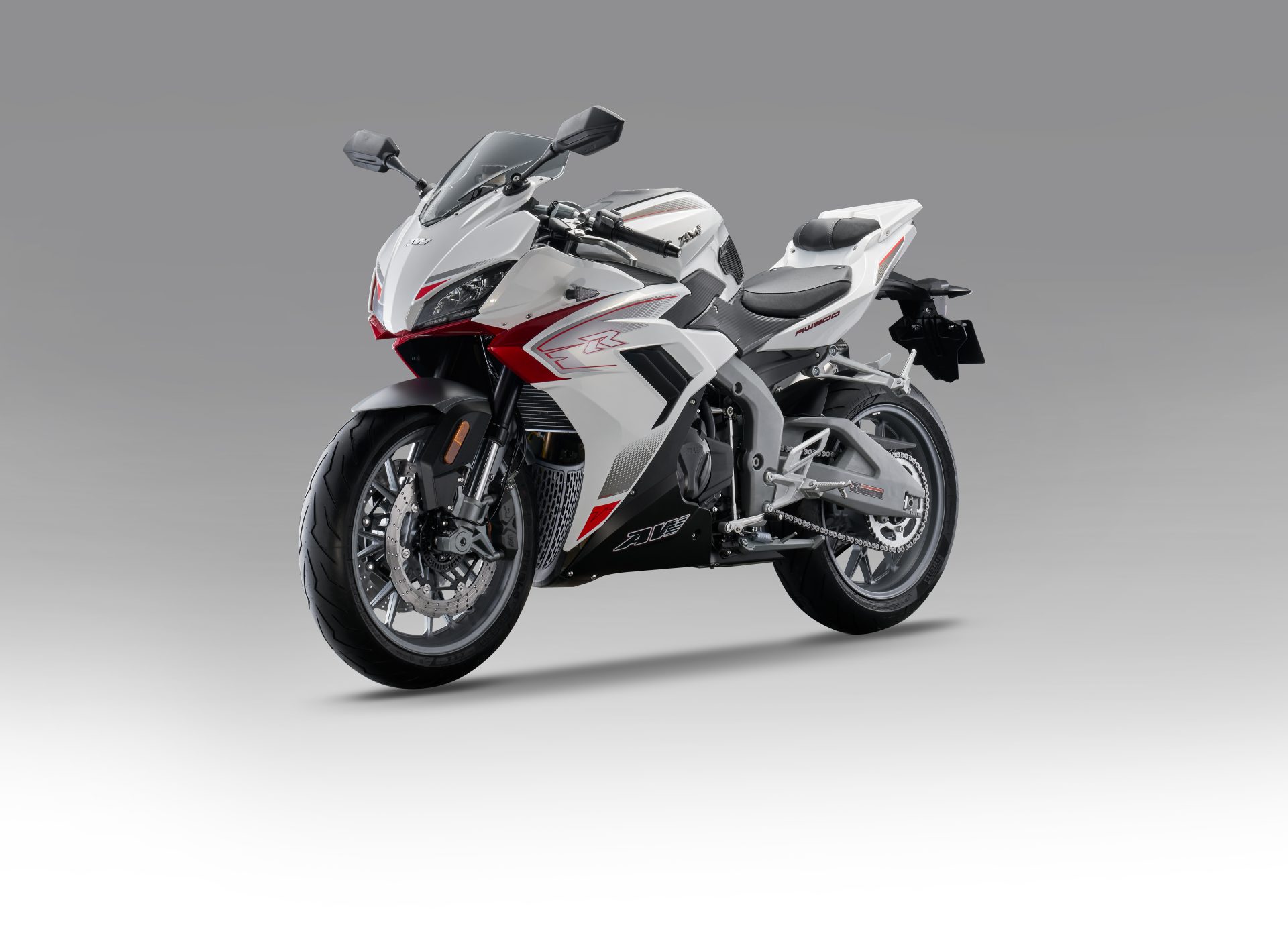

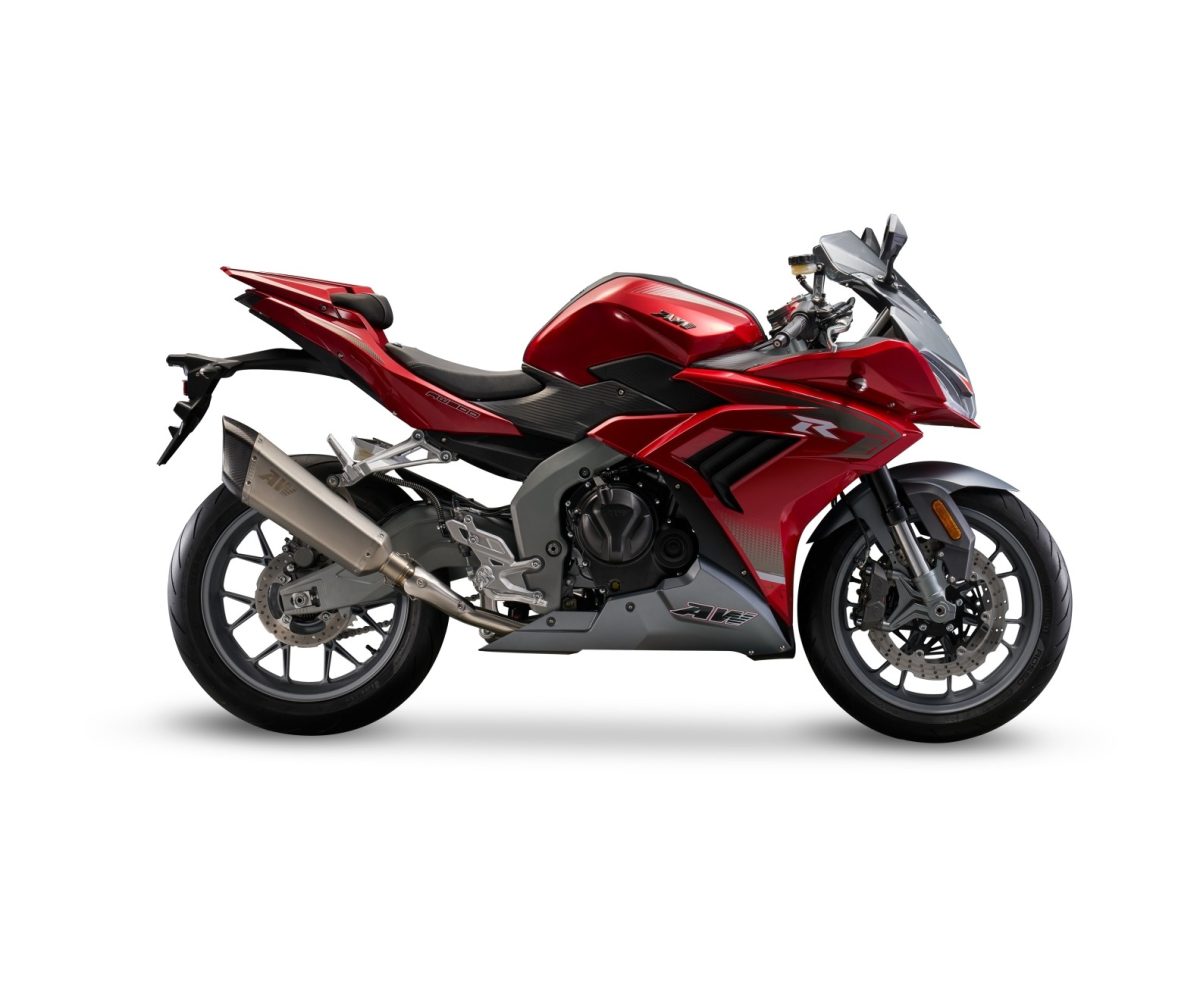

AW SABER 500

Price:

Engine: In-line twin-cylinder/liquid-cooled /DOHC/8 valves

Engine
Engine model:	water cooled two cylinder DOHC 8 valves asynchronous engine
Displacement:	471cc
Max power:	35kw/8500rpm
Top torque:	41N.m/7000rpm
Bore*Stroke:	67*66.8mm
Fuel Supply System:	DERFI EFI
Transmission:	Wet Muti-blade international 6 gears

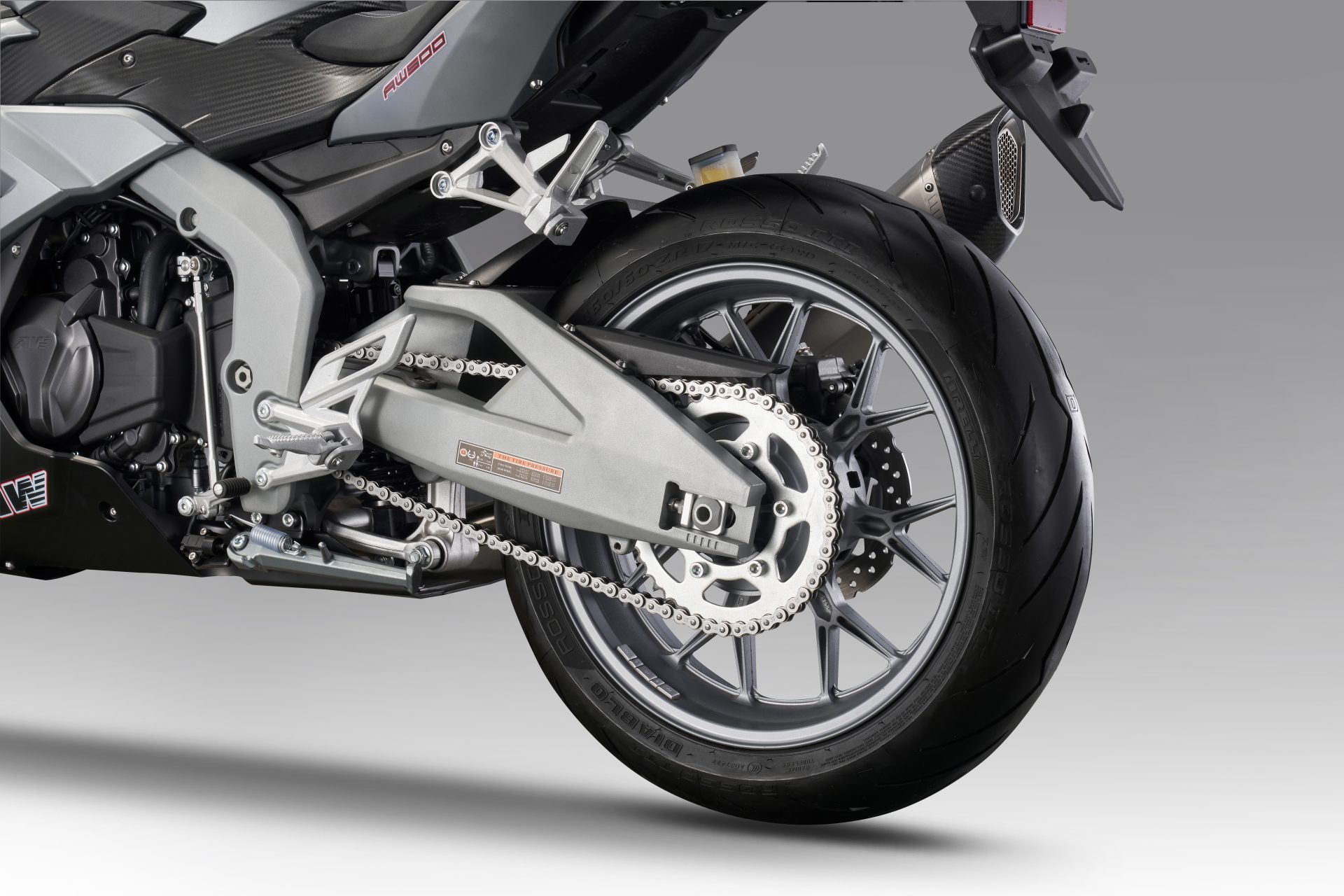

Driving model:	520 thickened oil chain
Top speed:	185km/H

Vehicle Spec
LWH:	20206481128mm

Wheel base:	1375mm
Seat height:	800mm
Fuel tank capacity :	16L
Net weight :	170kgs

Security control
Frame structure :	Alloy double-spar frame, alloy swingarm
Front suspension:	41mm inner tube up-side-down,150mm stroke, adjustable
Rear suspension:	Single independent rear absorber, 104mm stroke
Front brake:	310mm four cylinder calipers double disc brake ABS
Rear brake:	220mm two cylinder caliper sing disc brake ABS
Front tire:	Pirelli 120/70 ZR17 M/C 58W
Rear tire:	Pirelli 160/60 ZR17 M/C 69W

Vehicle Model	Atr2 track only
Engine type	LX268MP
Engine	Twin cylinder/liquid cooled /DOHC/4 valves
Displacement	322cc
Cylinder diameter X row distance	68.0 X 44.2 (mm)
Compression ratio	11.2:1
Maximum power	32kw/10500rpm
Maximum torque	29N·m/9000rpm
Maximum speed	180Km/h
Intake mode	ram intake
Transmission mode	wet 7-piece sliding clutch/international 6-speed/chain drive
Length, width and height	1940 X 680 X 115 mm
Engine	In-line twin/liquid cooled /DOHC/8 valves
Specification	2020×648×1128 (mm)
Displacement	471cc
Transmission mode	wet multi-disc sliding clutch / 6-speed front transmission /DID
Vehicle weight	178KG (including 90% fuel)
Clutch	sliding clutch
Maximum power	35kw/8500rpm
Maximum torque	41N·m/7000rpm
Maximum speed	185Km/H

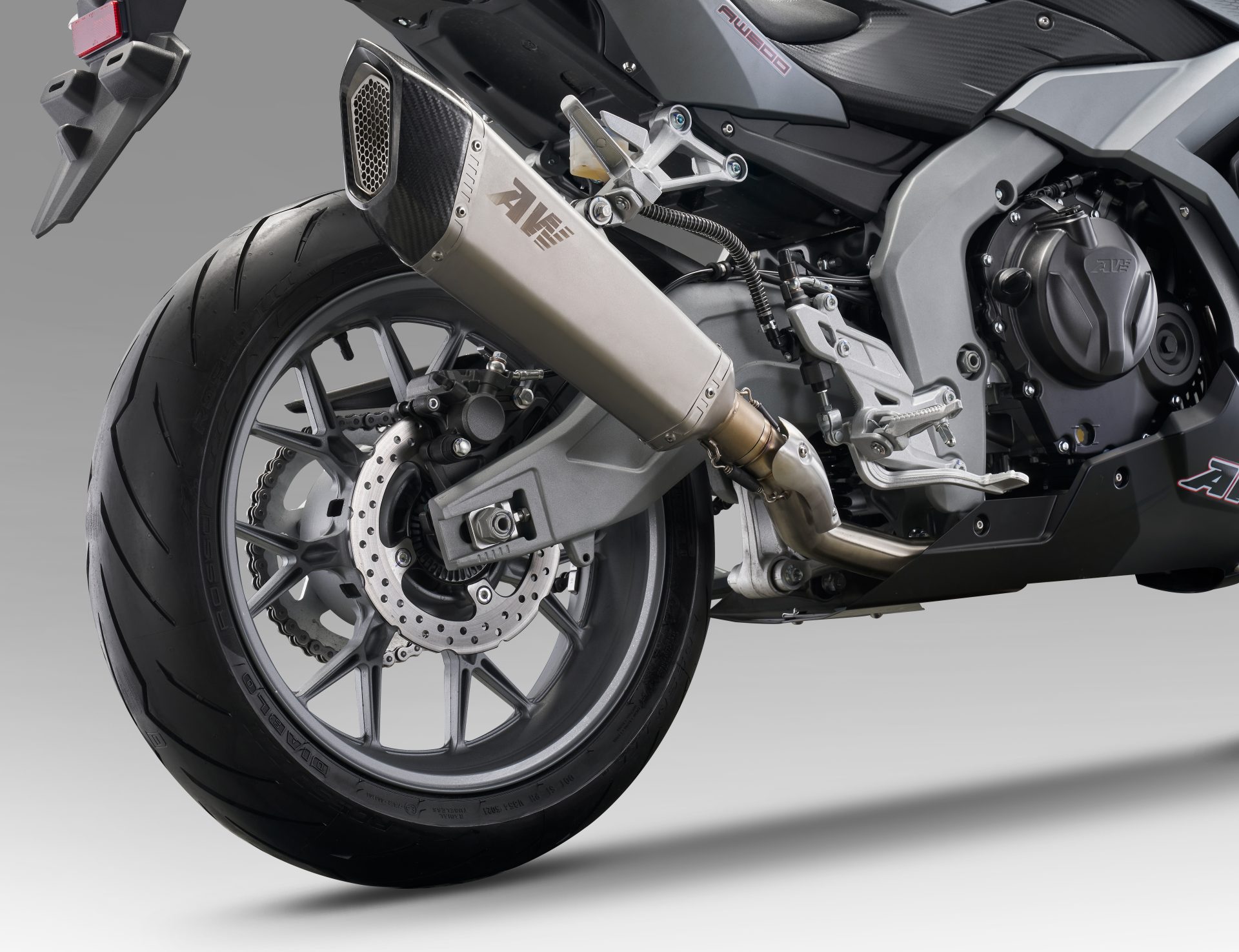

Exhaust system	full section stainless steel with noise reduction function carbon fiber
Tailpipe exhaust system
Frame form	all aluminum alloy double beam frame
Suspension system	41mm inverted double damped adjustable front fork // center
Full function adjustable shock absorption, aluminum alloy double swing arms
Braking system	Front 310mm dual disc with 4 piston calipers (ABS), rear 220mm single disc with single piston calipers (ABS)
Tyre size	120/70 ZR17 M/C 58W before Pirelli (DIABLO ROSSOIII) and 160/60 ZR17 M/C 69W after Pirelli (DIABLO ROSSOIII)
